Current Measurement Contactless Voltage Detector Sound / LED Alarm High Safety Standard

Name: Current Measurement Contactless Voltage Detector Sound LED Alarm High Safety Standard
Brand: PEAKMETER
Price: 1 USD

Quality Current Measurement Contactless Voltage Detector Sound / LED Alarm High Safety Standard wholesale

Brand Name : PEAKMETER

Model Number : PM8909

Certification : CE

Place of Origin : China

MOQ : 1

Price : Negotiation

Payment Terms : T/T

Supply Ability : 150,000 Pcs Per Month

Delivery Time : 5-40 work days

Packaging Details : Product Size 156mm x20mm x20mm Product Weight Approx. 45g

Function 1 : Low Battery Indication

Frequency : 50Hz/60Hz

Function 2 : Sound and Light Alarmed

Voltage Range : 12-1000V/28~1000V

Function 3 : Zero/Live Wire Judgment

NCV Sensitivity : High, Medium, low sensitivity

Contact Now

Non-Contact Voltage Tester , AC Voltage / Current Measurement And Double Sensitivity Adjustment

Features of Non-Contact Voltage Detector

Flash Light: White
Auto Power Off: Yes
Frequency: 50-60Hz
Humidity: < 85%RH
Alarm Mode: Sound and light
Voltage Sensitivity: 12V to 1000V AC
Operating Temperature: 32 to 122F (0 to 50degree)
Storage Temperature: -4 to 140F (-20 to 60degree)
Battery: 2 * 1.5V AAA Batteries (Battery not included)

Specifications
AC Voltage detection range	About 12~1000V/28~1000V
Frequency	50Hz/60Hz
Alarm Mode	Sound and Light
Flash Light	White LED Illumination Lamp
Probe Shape	Prolate
Auto Power Off	√
Low Battery Indication	√
Zero/Live Wire Judgment	According to the signal strength, strong signal is live wire
NCV Sensitive	Selecting 3 types of sensitivity automatically (low, mid, high)
NCV Sensitive Indication	The instrument uses the alarm sound of different frequency and LED lamp of different color to indicate low, moderate or high sensitivity
Service Temperature	0~40℃
Storage Temperature	-10~50℃
Altitude	<2000m
Power Supply	2*1.5V AA batteries
Size	156mm27mm20mm
Net weight	33g (batteries are not included)
Gross weight	61g
Safety Rating	EN61010-1, EN61557-3, EN61326-1 CAT. Ⅲ 1000V/CAT. Ⅳ 600V

Product Description of Non-Contact Voltage Detector

PM8909 is a Professional Non - Contact AC Voltage Detector. The tester will automatically select 3 kinds of sensitivities during NCV measurement and will be displayed on the LCD screen. The sound and light alarms of different frequencies indicate AC voltages of different intensities. The flashlight function makes it easy for the user to find the location to be measured in dark environments.

Double sensitivity adjustment of AC voltage
Professional AC Voltage Detector with NCV Detection.
Range of Voltage sensitivity is from 12V to 1000V AC.
Distinguish the Zero Line and Fire line automatically.
Rotatable Battery Cover, Replacing the battery easier.
Sound and LED alarm, through the different alarm sound and different color LED to express high, Medium and low sensitivity.
Its designed is according to EN61010-1-2-030, EN61010-2-033, and CAT.III1000V Concerning Safety Requirements.

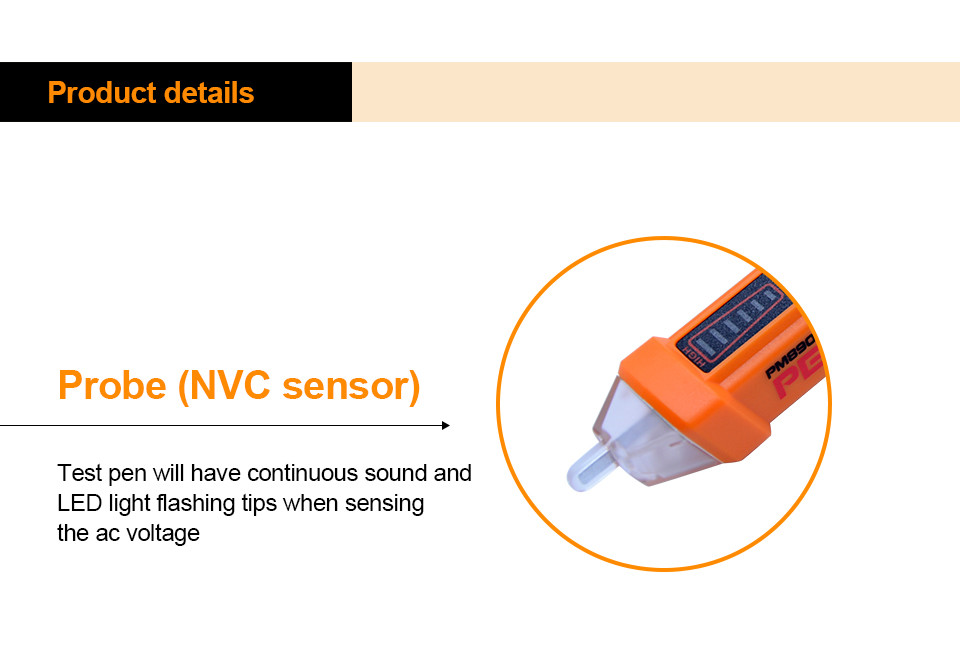

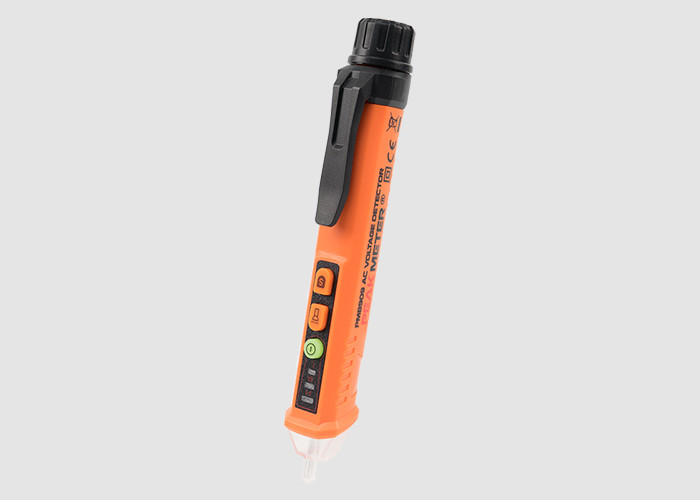

Detailed Images of Non-Contact Voltage Detector

Current Measurement Contactless Voltage Detector Sound / LED Alarm High Safety Standard

Our Target

We aim to produce intelligent instruments, provide high quality services, and become an innovative manufacturer.

R&D Team

Our R&D team have over 20 years R&D experience in instrument industry .

Mission

Our mission is to get our work done well to become customer’s reliable business friend. S.E.Q( Service , Economic pricing , Quality ) is our concern , we know what you need ,and we know what we have .
