Brand Name : PEAKMETER
Model Number : PM8909C
Certification : CE
Place of Origin : China
MOQ : 1
Price : Negotiation
Payment Terms : T/T
Supply Ability : 150,000 Pcs Per Month
Delivery Time : 5-40 work days
Packaging Details : Product Size 156mm x20mm x20mm Product Weight Approx. 45g
Frequency : 50Hz/60Hz
Function 1 : Flash Light
Alarm Mode : Sound and Light alarm
Function 2 : Zero/Live Wire Judgment
AC Voltage detection : About 12~1000V/48~1000V
Function 3 : Auto Power Off
Peakmeter Photovoltaic System Solution: Peakmeter Photovoltaic System Solution.pdf
AC voltage detection range | About12~1000V/48~1000V |
Frequency | 50Hz/60Hz |
Special feature | foldable screwdriver and LED display |
Alarm Mode | Sound and Light alarm |
Flash Light | White LED Illumination Lamp |
Auto Power Off | √ |
Low-Battery Indication | √ |
Zero/Live Wire Judgment | According to the signal strength, strong signal is live wire |
NCV Sensitive | Selecting 3 types of sensitivity automatically (low, mid, high) |
NCV Sensitive Indication | The instrument uses the alarm sound of different frequency and LED lamp of different color to indicate low, moderate or high sensitivity |
Service Temperature | 0~40℃ |
Storage Temperature | -10~50℃ |
Altitude | <2000m |
Power Supply | 2*1.5V AA batteries |
Size | 156mm*31mm*20mm |
Net weight | About 45g (batteries are not included) |
Gross weight | 70g |
Safety Rating | EN61010-1, EN61557-3, EN61326-1 CAT. Ⅲ 1000V/CAT. Ⅳ 600V |

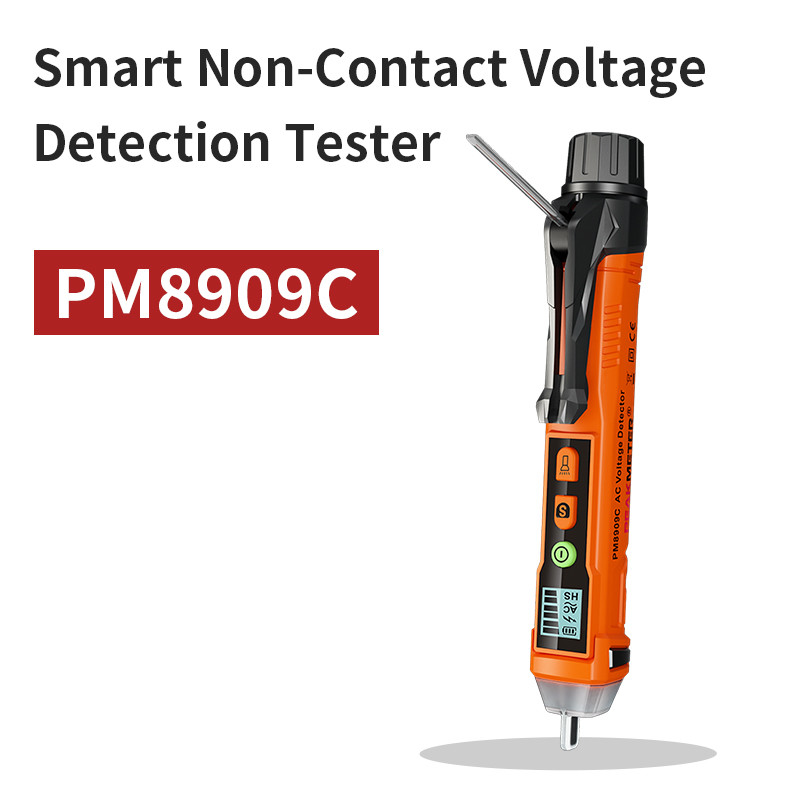

PM8909C is a portable tester with screwdriver. The tester will automatically select 3 kinds of sensitivities during NCV measurement and will be displayed on the LCD screen. The sound and light alarms of different frequencies indicate AC voltages of different intensities. The flashlight function makes it easy for the user to find the location to be measured in dark environments. The tester is equipped with a replaceable screwdriver, which is all-in-one, portable and compact.
