Auto-Range IP65 Waterproof Multifunction Voltage Detector for Industrial Applications

Name: AutoRange IP65 Waterproof Multifunction Voltage Detector for Industrial Applications
Brand: PEAKMETER
Price: 1 USD

Quality Auto-Range IP65 Waterproof Multifunction Voltage Detector for Industrial Applications wholesale

Brand Name : PEAKMETER

Model Number : PM8200A

Certification : CE

Place of Origin : China

MOQ : 1

Price : Negotiation

Payment Terms : T/T

Supply Ability : 150,000 Pcs Per Month

Delivery Time : 5-40 work days

Packaging Details : Product Size 290mm×80mm×34mm Product Weight about 305g

Function 1 : IP65 Waterproof and Dustproof

Voltage Measurement : 1200V AC/1500V DC

Function 2 : Auto Range

Phase Sequence Test : 3-phase voltage 150V ~ 400V

Function 3 : RCD Test

Product Name : Voltage/Connectivity Tester

Contact Now

High-Performance Voltage and Connectivity Tester

Features of Voltage/Connectivity Tester

High Accuracy Measurement
Auto Range
Phase Sequence Test
RCD Test
Continuity Test
IP65 Waterproof and Dustproof

PM8200A
Specification	Range	Accuracy
DC voltage AC voltage 50Hz~1kHz	12V	±1V
	24V	±2V
	50V	±4V
	120V	±8V
	230V	±12V
	400V	±14V
	690V	±18V
	1000V	±24V
DC voltage	1500V	±30V
Continuity	≤100kΩ buzzing, indicator light is on.
Feature
Auto Range	√
Phase Sequence Test	Range of three-phase voltage test: 150V-400V
RCD test	Voltage 230V(40-500Hz); Current 30mA-40mA
Flash Light	√
Auto Power Off	√
Continuity Test	√
Waterproof and dustproof level	IP65
Wake Up	√
General
Battery	2*1.5V AAA Batteries
Weight	305g(Without battery)
Size	290mm8034mm
Safety Rating	EN61326-1,EN60529,IEC 61243-3 CAT Ⅲ 1000V

Description of Voltage/Connectivity Tester

The PM8200A is a high-performance voltage and connectivity tester designed for electricians, engineers, and technicians. With its rugged design, this instrument is ideal for various complex electrical environments. The PM8200A offers precise measurements and versatile features, making it an essential tool for all your electrical testing needs.

High Accuracy Measurement: Measures DC voltage from 12V to 1500V and AC voltage within the 50Hz to 1kHz range, ensuring precise data.
Auto Range: Automatically selects the optimal range, simplifying operation and enhancing measurement efficiency.
Phase Sequence Test: Supports three-phase voltage range from 150V to 400V, facilitating the testing of three-phase circuits.
RCD Test: Suitable for RCD testing at 230V voltage and 30mA to 40mA current, ensuring proper operation of residual current devices.
Continuity Test: Indicates circuit continuity with a buzzer and indicator light, making it easy to use.
Waterproof and Dustproof: IP65 rating makes it suitable for harsh environments.

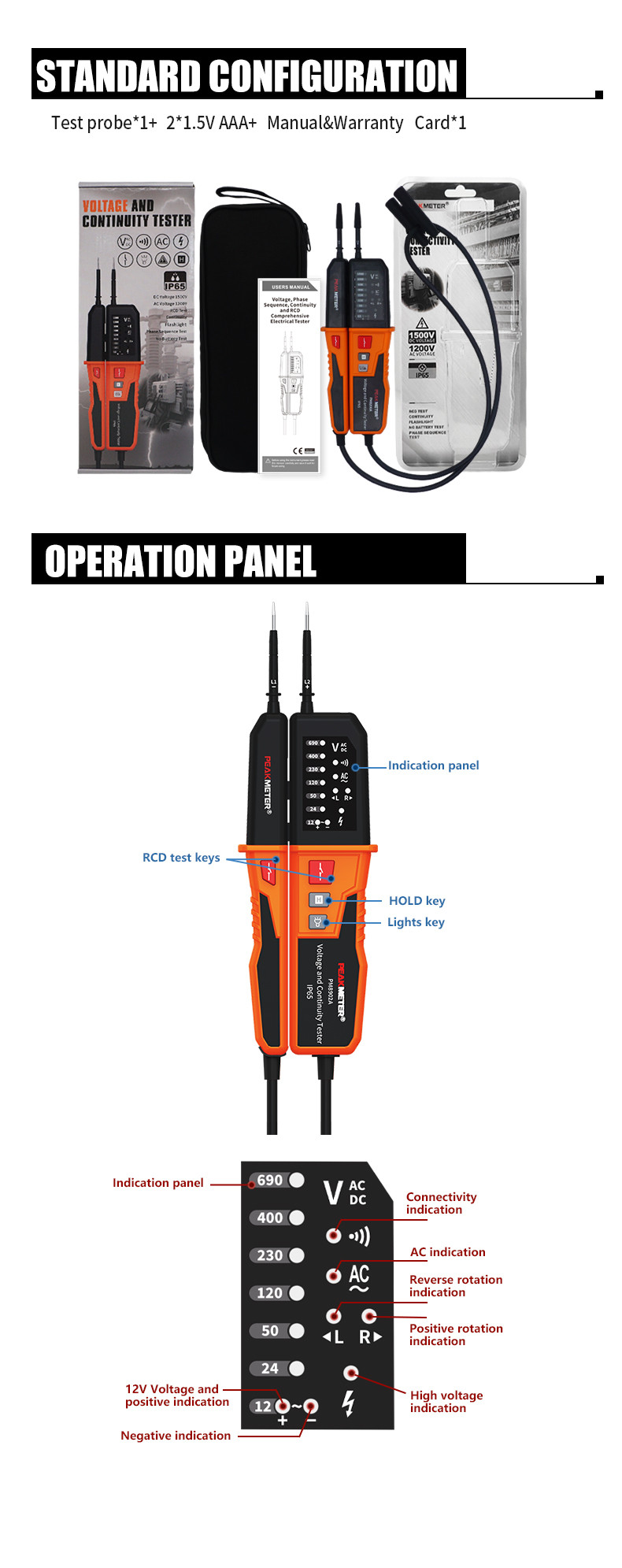

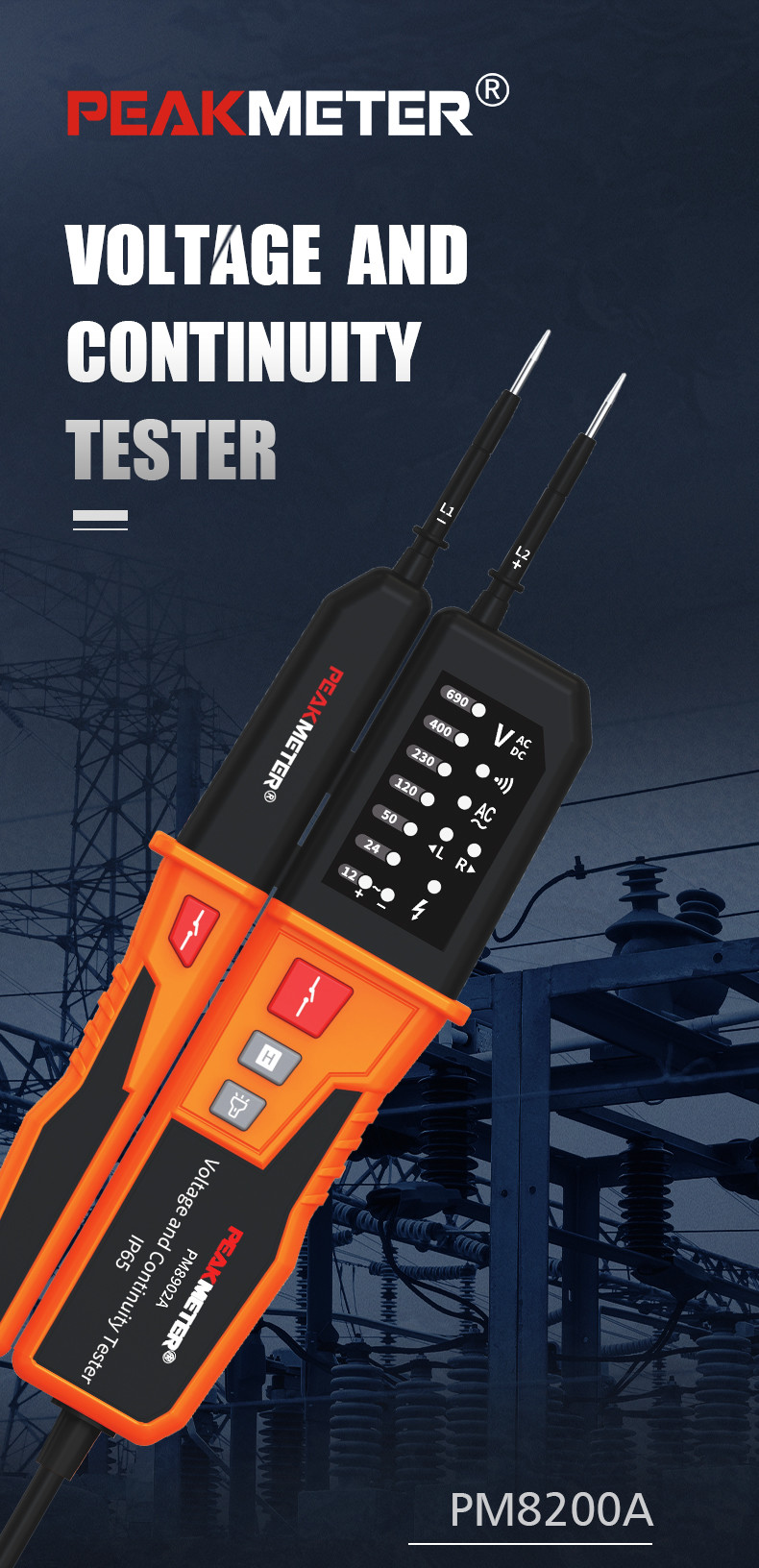

Images of Voltage/Connectivity Tester

Auto-Range IP65 Waterproof Multifunction Voltage Detector for Industrial Applications

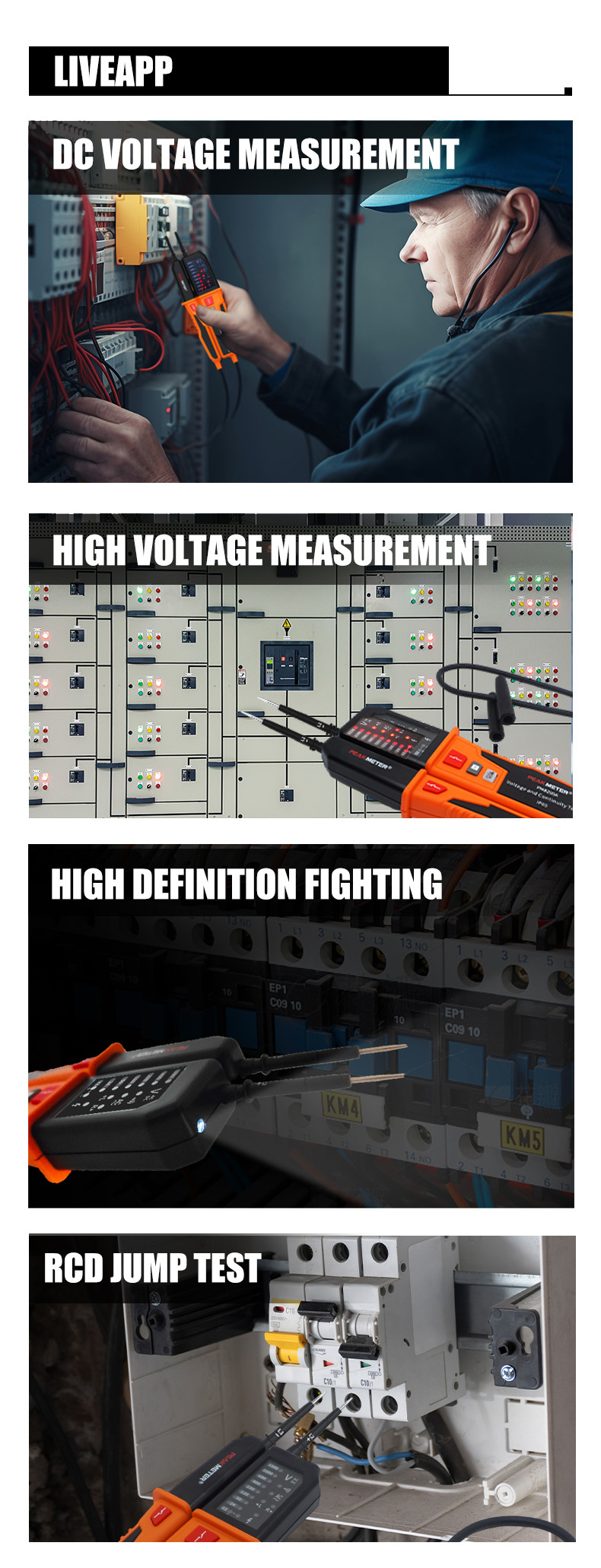

Applications

The PM8200A is suitable for various electrical maintenance, troubleshooting, and installation tasks, including but not limited to:

• Industrial electrical equipment maintenance

• Building electrical installation

• Electronic equipment repair

• Household appliance testing

Services

All products have 12 months warranty, maintenance will not charge during this period (excluded damage of error operation, damage of battery or surface) , and delivery fee will be borne by customer.
Material and service fee will be charged when warranty is expired, and delivery fee will be charged .
To product which is out of warranty but has already repaired, we will provide another three months free service if the same spare part has problem recurs .
Customer can refer the maintenance order to get more information .
