High-Precision Voltage Tester Ultimate Accuracy for Professionals Voltage Connectivity Tester

Name: HighPrecision Voltage Tester Ultimate Accuracy for Professionals Voltage Connectivity Tester
Brand: PEAKMETER
Price: 1 USD

Quality High-Precision Voltage Tester Ultimate Accuracy for Professionals Voltage Connectivity Tester wholesale

Brand Name : PEAKMETER

Model Number : PM8200A

Certification : CE

Place of Origin : China

MOQ : 1

Price : Negotiation

Payment Terms : T/T

Supply Ability : 150,000 Pcs Per Month

Delivery Time : 5-40 work days

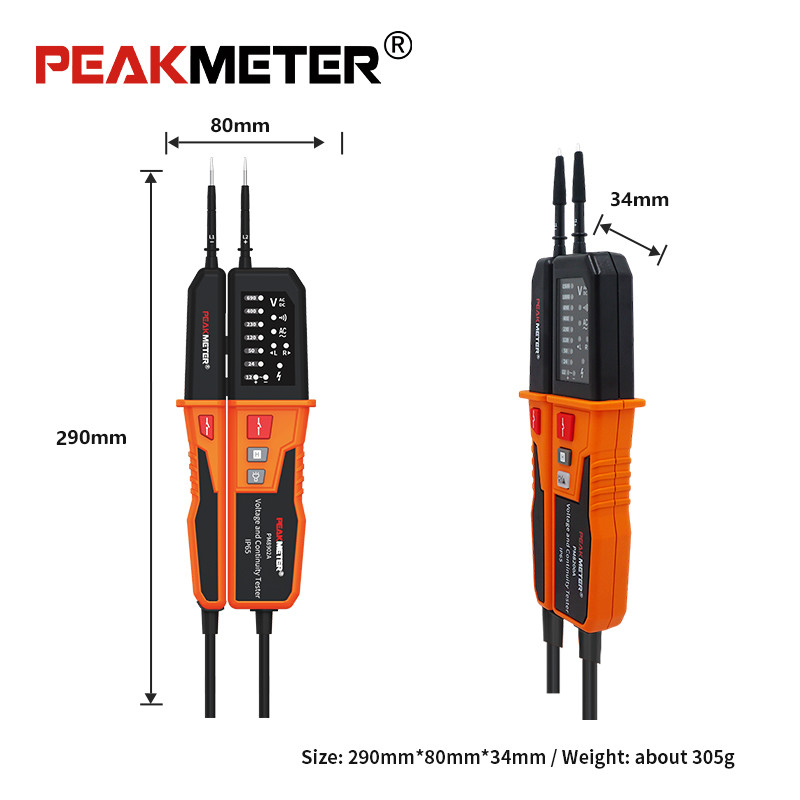

Packaging Details : Product Size 290mm×80mm×34mm Product Weight about 305g

Function 1 : Continuity Test

Voltage Measurement : 1200V AC/1500V DC

Function 2 : Auto Range

Phase Sequence Test : 3-phase voltage 150V ~ 400V

Function 3 : RCD Test

Product Name : Voltage/Connectivity Tester

Contact Now

High-Performance Voltage and Connectivity Tester

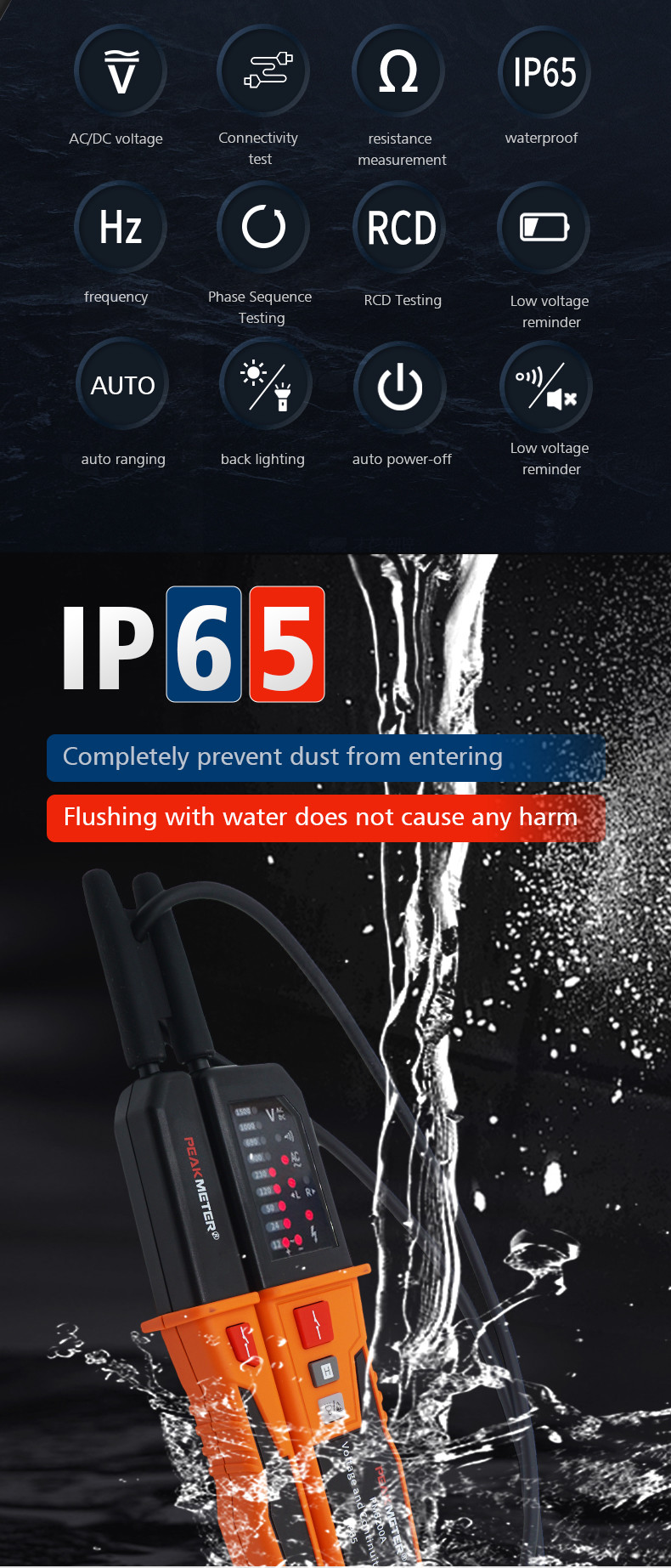

Features of Voltage/Connectivity Tester

High Accuracy Measurement
Auto Range
Phase Sequence Test
RCD Test
Continuity Test
IP65 Waterproof and Dustproof

PM8200A
Specification	Range	Accuracy
DC voltage AC voltage 50Hz~1kHz	12V	±1V
	24V	±2V
	50V	±4V
	120V	±8V
	230V	±12V
	400V	±14V
	690V	±18V
	1000V	±24V
DC voltage	1500V	±30V
Continuity	≤100kΩ buzzing, indicator light is on.
Feature
Auto Range	√
Phase Sequence Test	Range of three-phase voltage test: 150V-400V
RCD test	Voltage 230V(40-500Hz); Current 30mA-40mA
Flash Light	√
Auto Power Off	√
Continuity Test	√
Waterproof and dustproof level	IP65
Wake Up	√
General
Battery	2*1.5V AAA Batteries
Weight	305g(Without battery)
Size	290mm8034mm
Safety Rating	EN61326-1,EN60529,IEC 61243-3 CAT Ⅲ 1000V

Description of Voltage/Connectivity Tester

The PM8200A Voltage/Connectivity Tester is designed for professionals who demand precision and reliability in their electrical testing tools. This versatile tester combines high-accuracy voltage measurements with a range of advanced features, making it an essential addition to any electrician’s toolkit.

High Accuracy Measurement: Measures DC voltage from 12V to 1500V and AC voltage within the 50Hz to 1kHz range, ensuring precise data.
Auto Range: Automatically selects the optimal range, simplifying operation and enhancing measurement efficiency.
Phase Sequence Test: Supports three-phase voltage range from 150V to 400V, facilitating the testing of three-phase circuits.
RCD Test: Suitable for RCD testing at 230V voltage and 30mA to 40mA current, ensuring proper operation of residual current devices.
Continuity Test: Indicates circuit continuity with a buzzer and indicator light, making it easy to use.
Waterproof and Dustproof: IP65 rating makes it suitable for harsh environments.

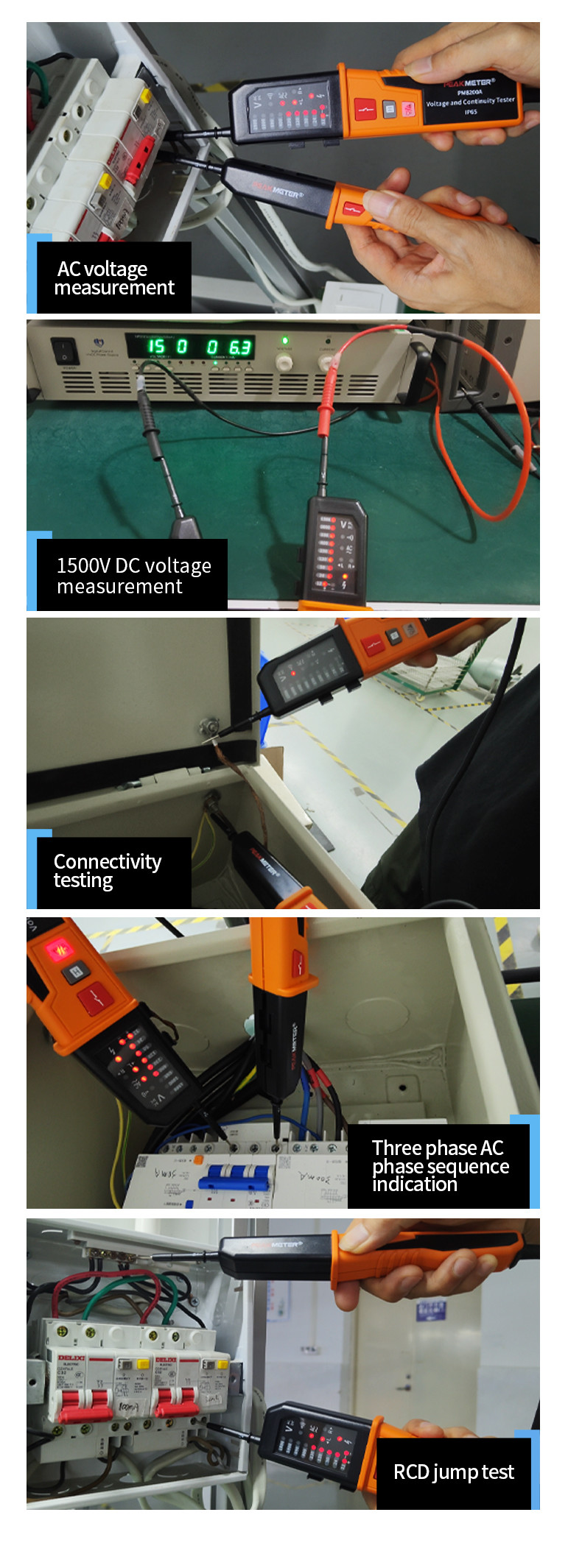

Images of Voltage/Connectivity Tester

High-Precision Voltage Tester Ultimate Accuracy for Professionals Voltage Connectivity Tester

The PM8200A Voltage/Connectivity Tester is a reliable, accurate, and versatile electrical testing tool. Its durable design and multiple functions ensure excellent performance in various electrical environments, making it an ideal choice for professional electricians and technicians.
